The typical 7512-12/7512-24 or
W1290-14/W1290-28 incandescent bulbs used in Navigation light
applications typically consume about 26 watts. This equates to about
1.85 amps per bulb on 14V systems and about 1 amp per bulb on 28V
systems.
Each LED Nav Bulb is approximately 4
watts, or about 85% less power consumption than medieval incandescent bulbs. Everyone can appreciate
this lower power consumption and especially those folks with the older
generator based charging systems who I've heard complain often about
"brownouts" during night ops on the ground at low RPM.

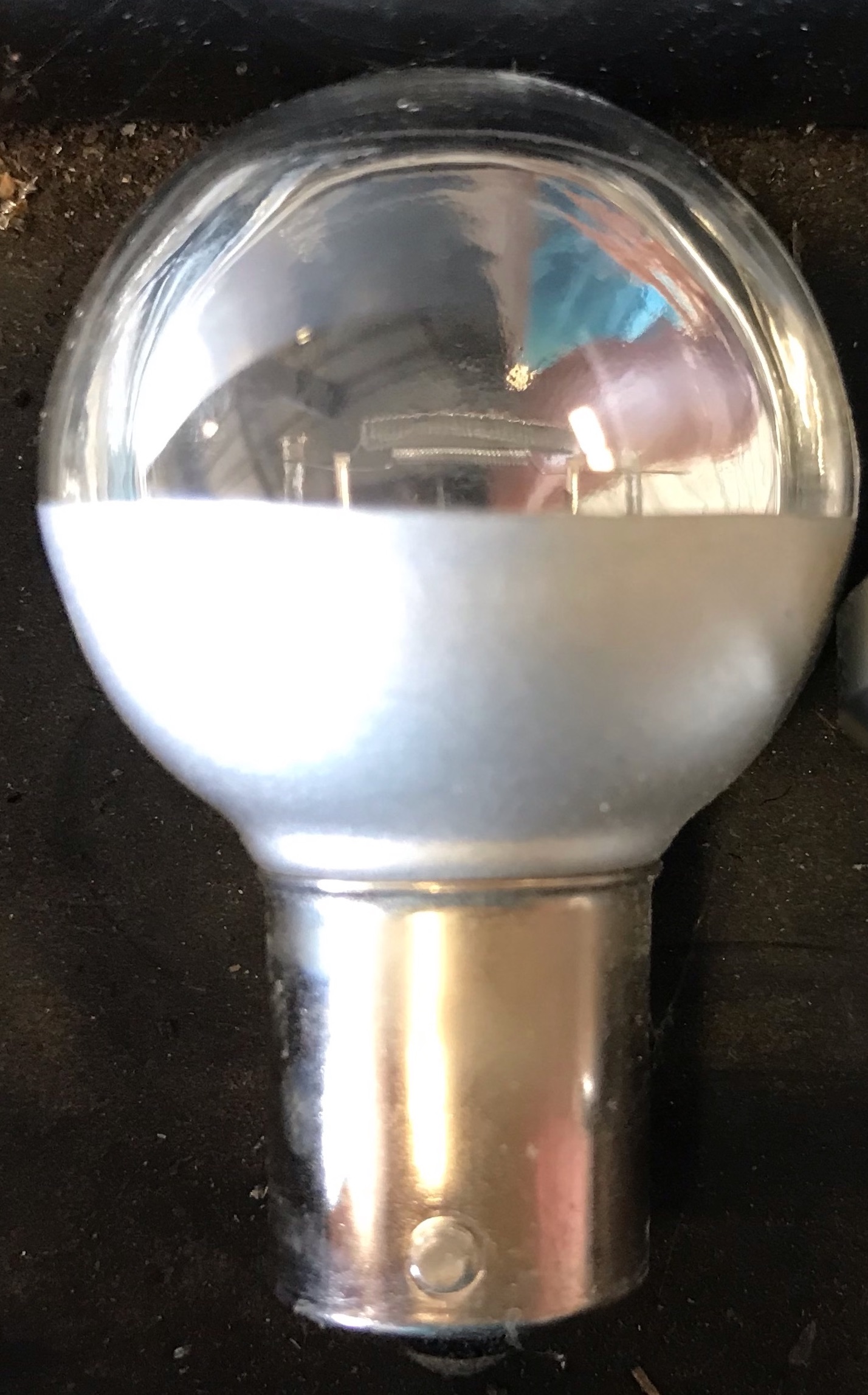

Medieval Incandescent Nav Bulb

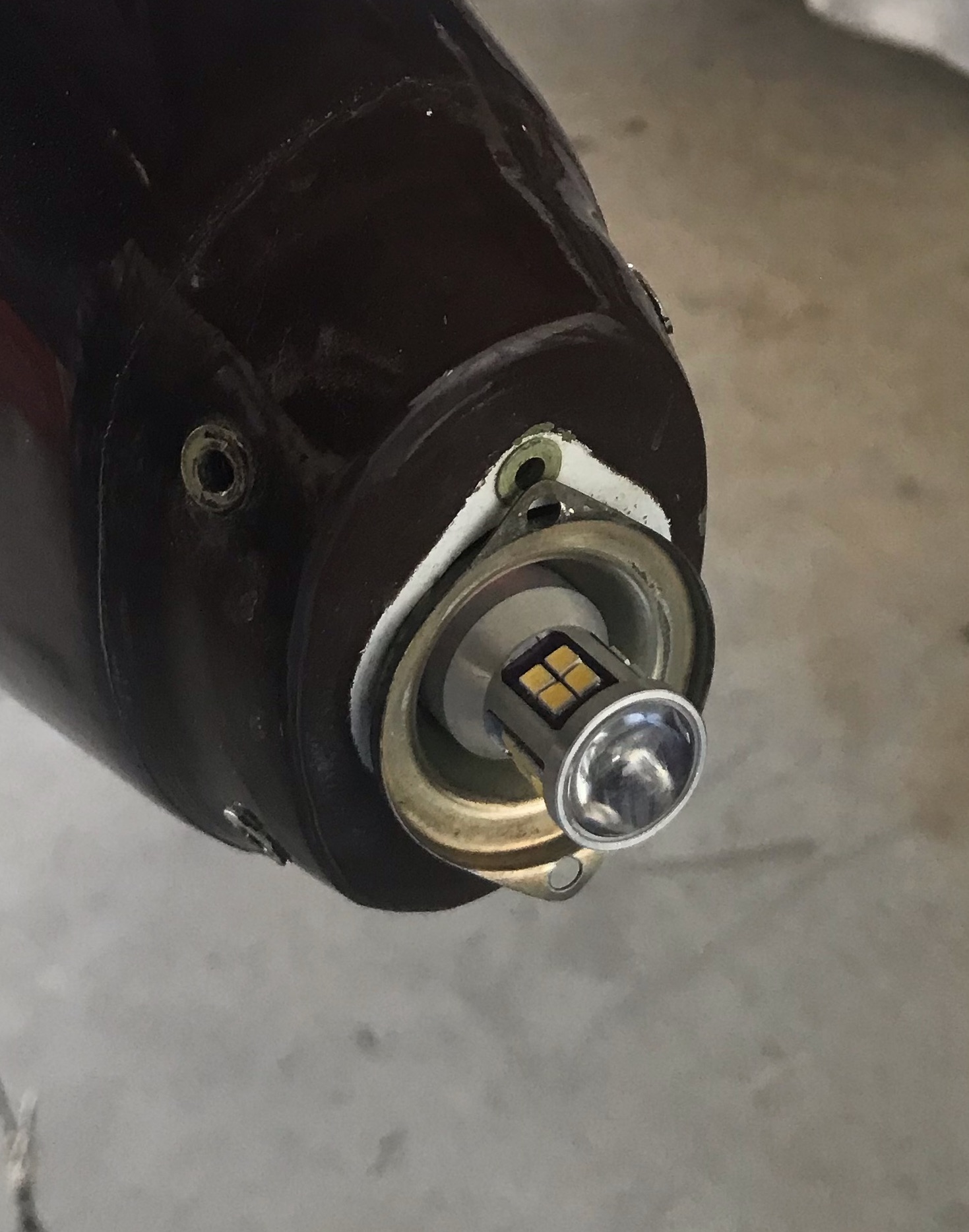

CSOBeech LED White Tail Nav Bulb has 4 Chip Faces!

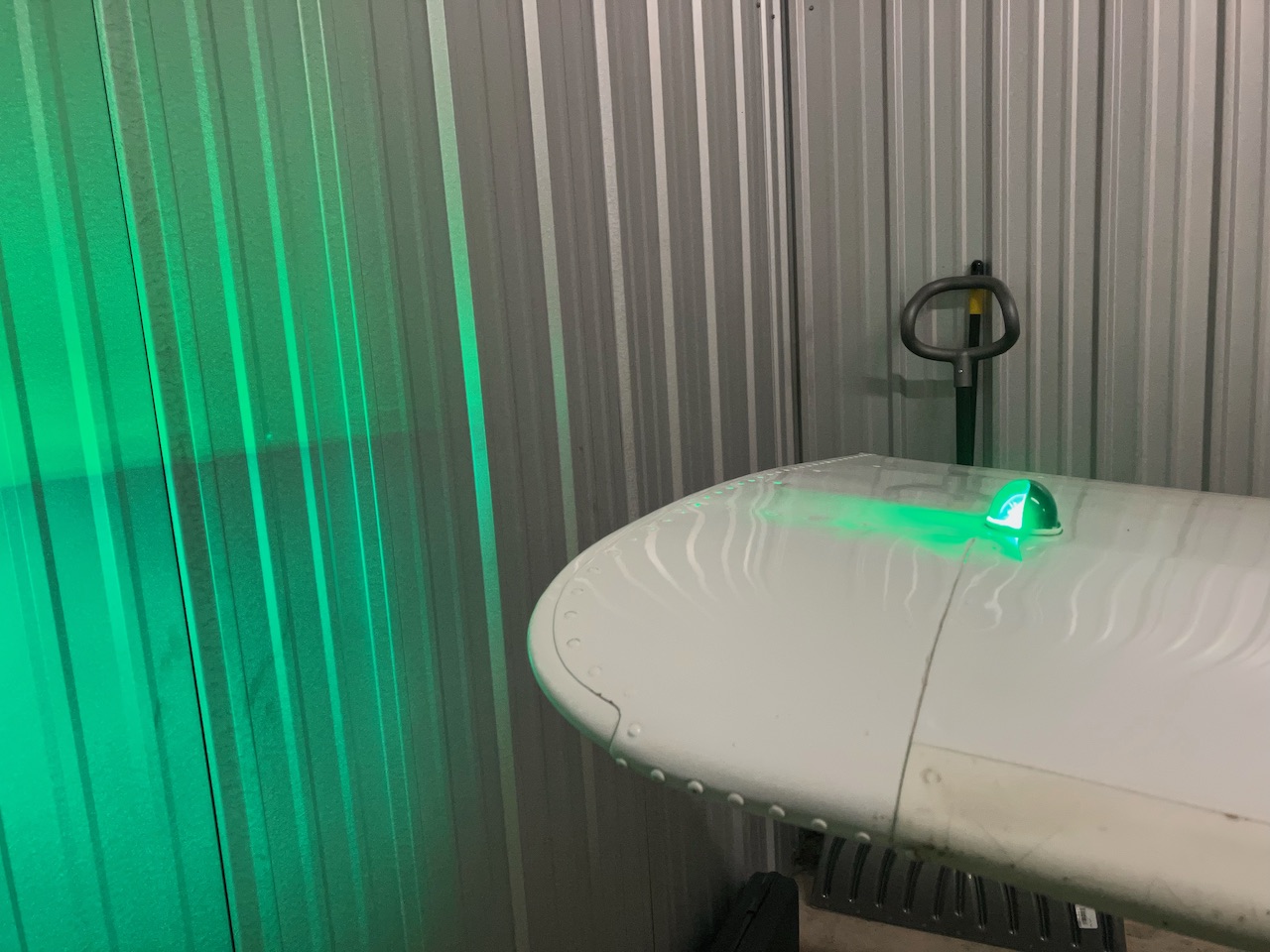

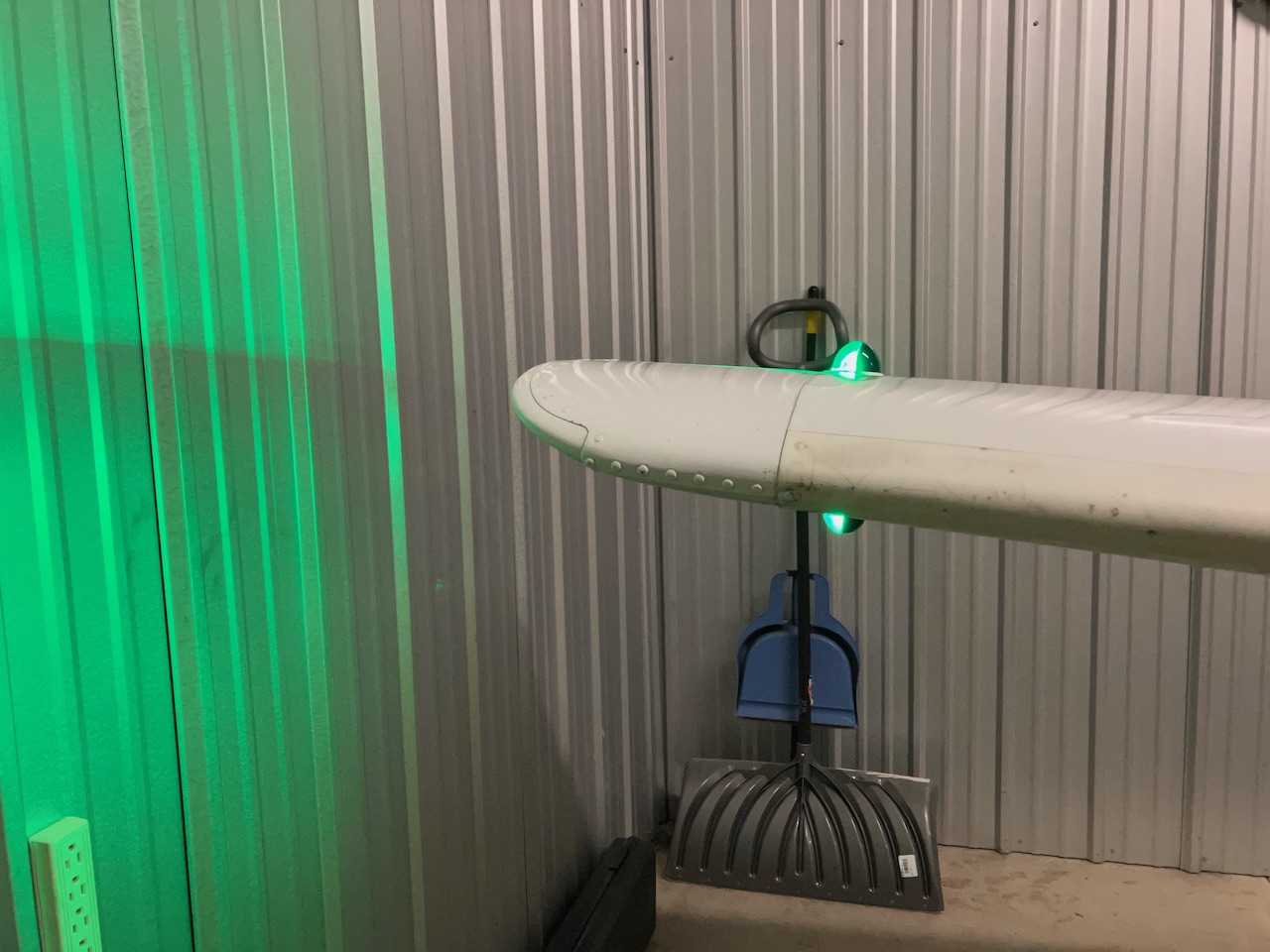

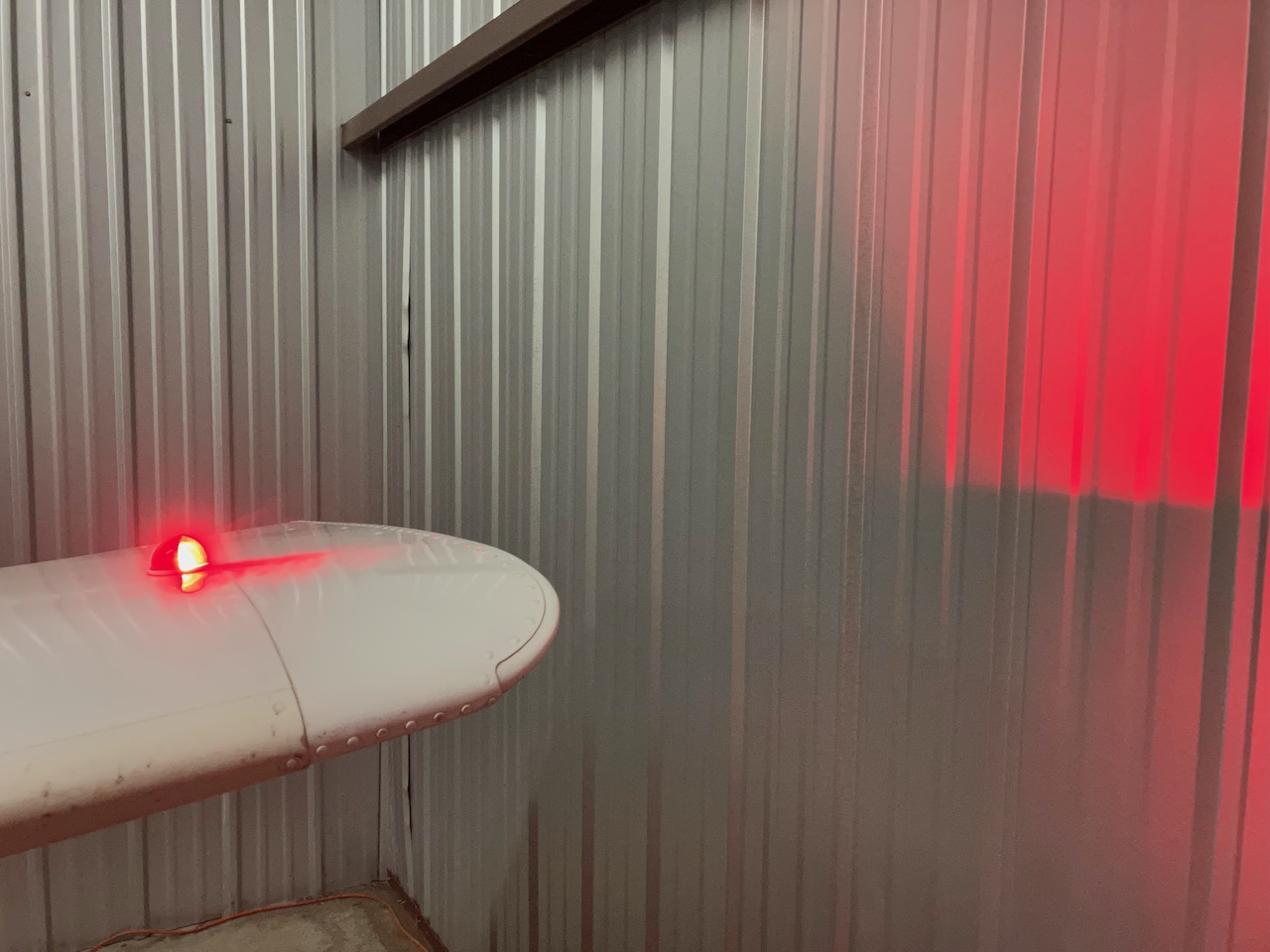

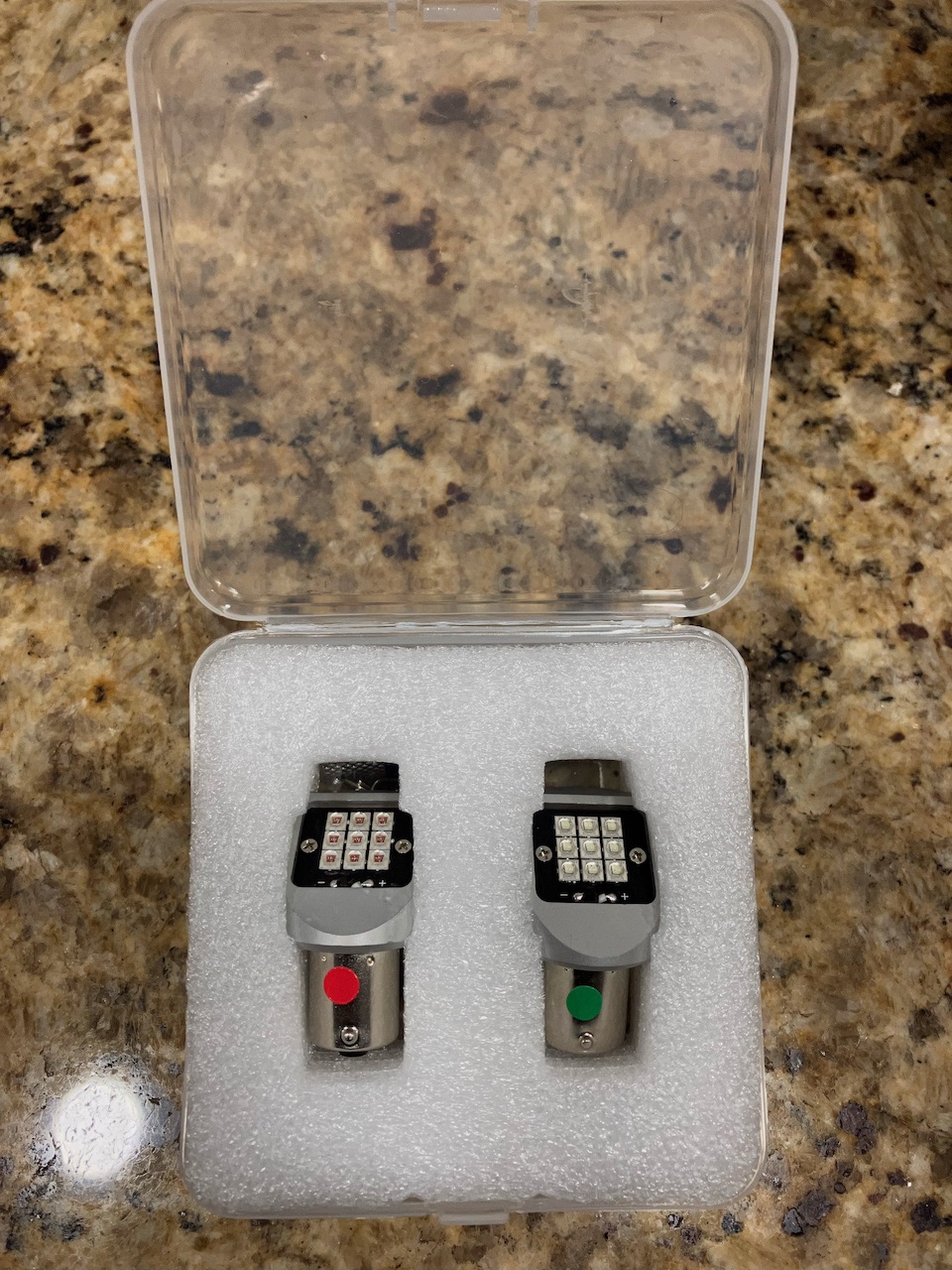

CSOBeech LED Red & Green Nav Bulbs
PS: Check out PAR36 LEDs HERE and PAR46 LEDs HERE.
CSOBeech.com is now able to offer LED Nav Bulbs for your
"Boat" or Experimental Aircraft which includes FREE USPS Priority Mail
shipping to US addresses (International 1st Class Shipping available).

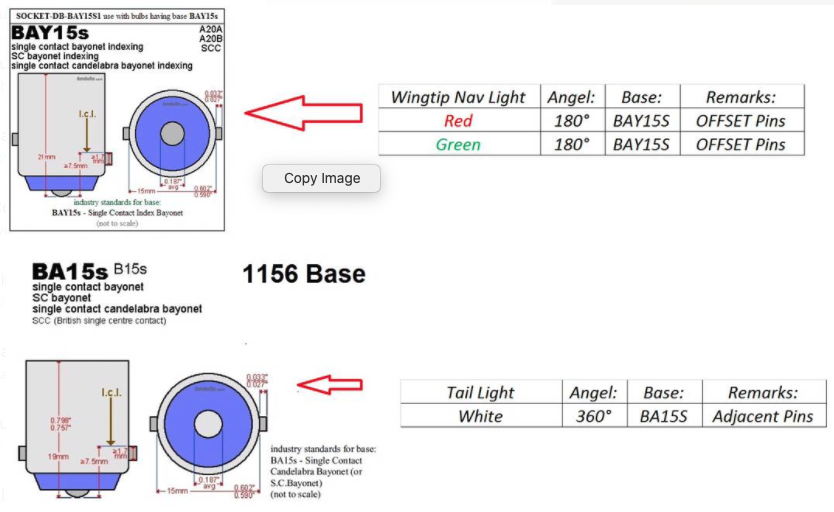

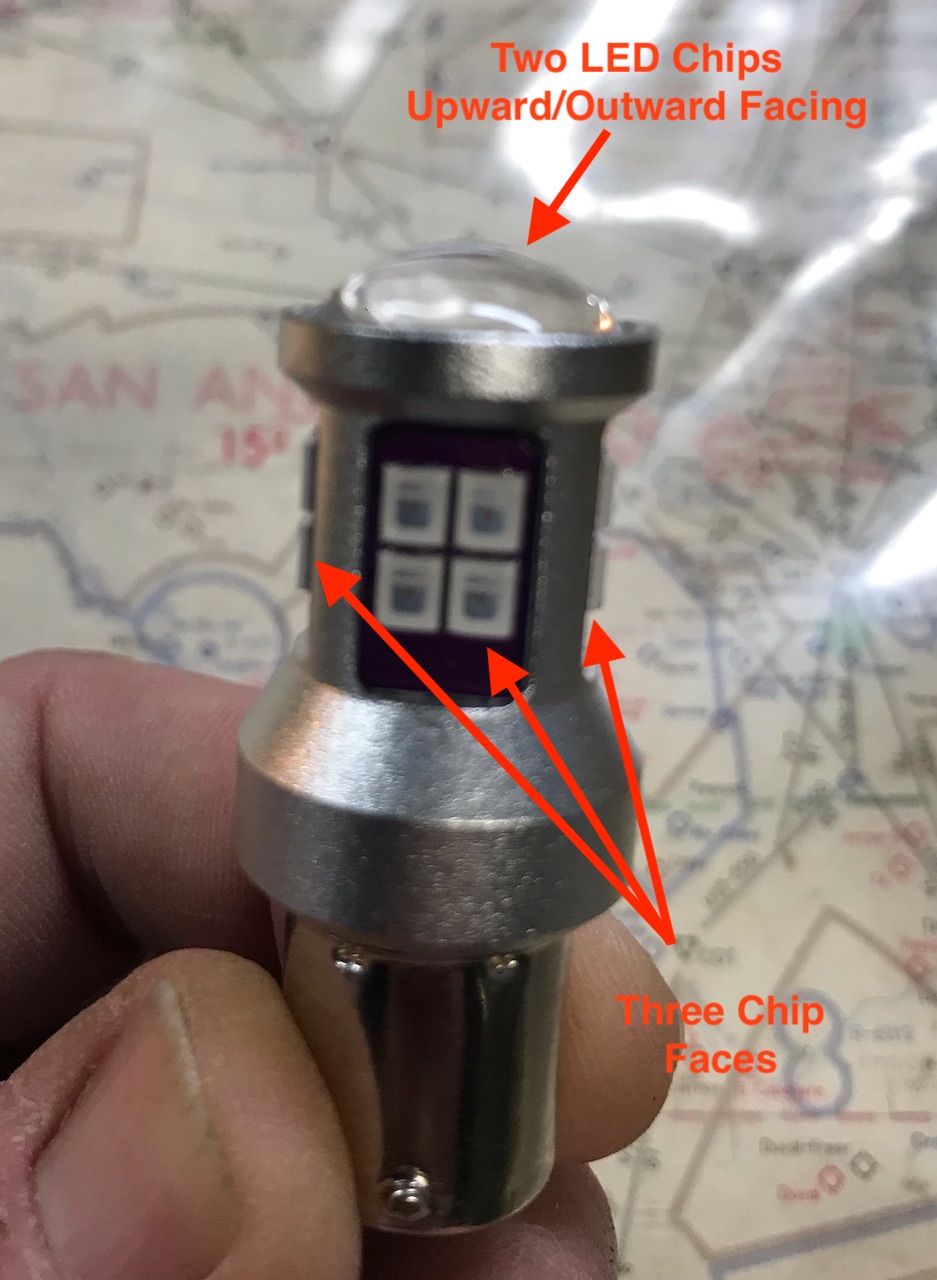

Red and Green LED Nav bulbs are
configured with the BAY15s base which has offset mounting pins which
orients the three LED chip faces in the proper facing position for
the installation. The angled LED face aids in upward/outward facing illumination.

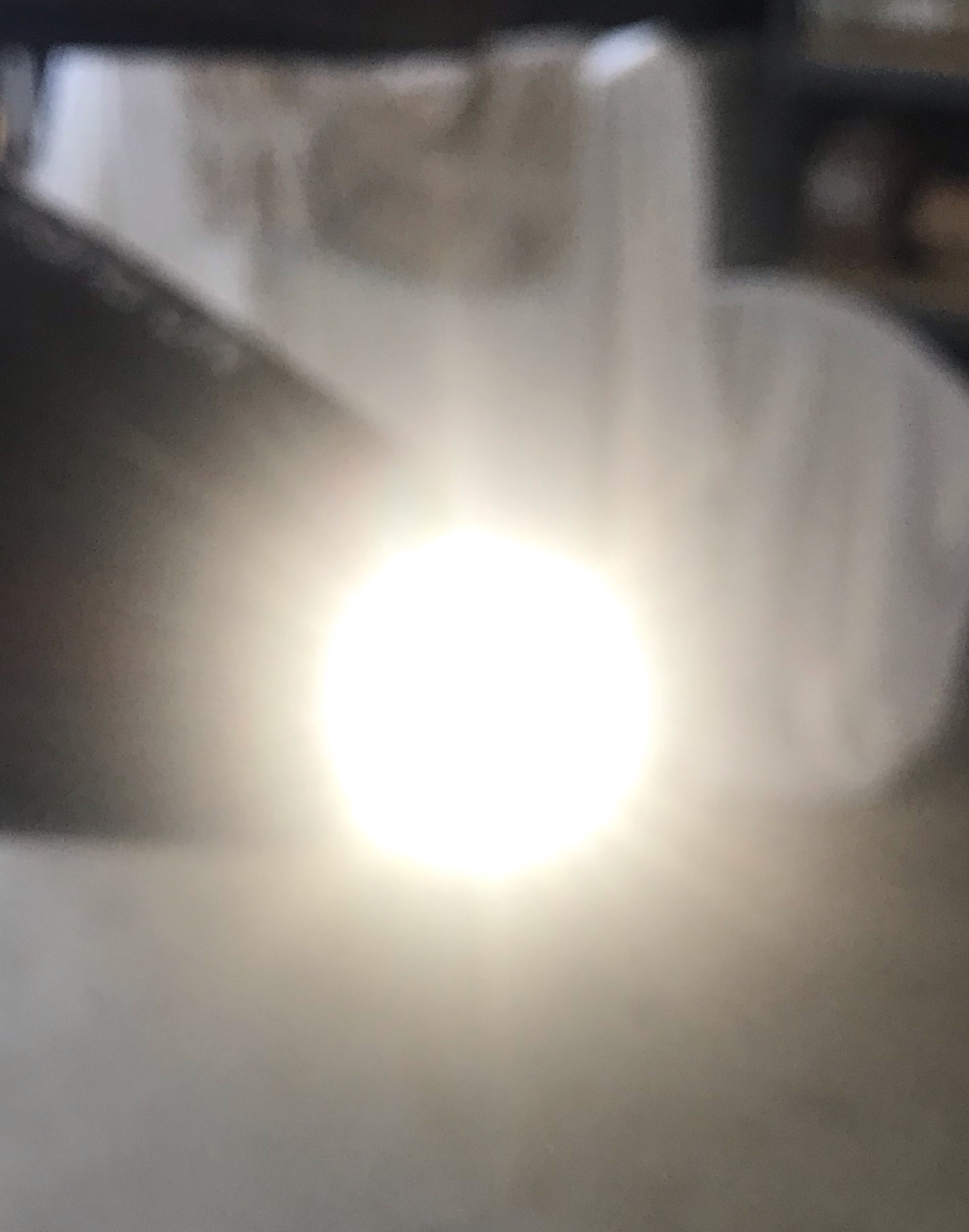

The White rear LED Nav bulb
is configured with a BA15s base and LED chips at each 90° face that creates a 360°
projection as well as a rear facing LED chip for additional rear projection
coverage.

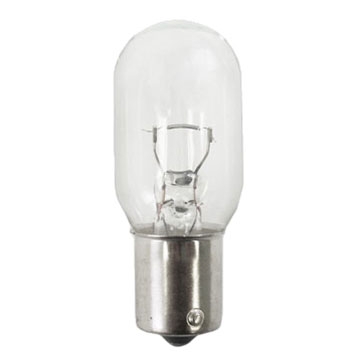

This White LED Bulb might also be a
consideration for replacing the monster 50Watt 1939X (28v) and 1940
(14v) incandescent bulbs which have a BA15s base and are used in many
beacon type applications. Replacing a 50 Watt amp hogging incandescent
bulb with a 4Watt LED bulb sounds like a great 21st Century idea.
CSOBeech.com is now able to offer these LED Nav Bulbs for your
"Boat" or Experimental Aircraft which includes FREE USPS Priority Mail
shipping to US addresses (International 1st Class Shipping available).
Remember, your purchase(s)
supports CSOBeech.com, still a FREE resource to the Beechcraft community.
Specifications:
•Replaces common RA-7512, W-1290, 7079B and A7512 14V and 28V incandescent reflector bulbs.
•
~4 Watts of power. Very Low power consumption compared to 26 watts for
incandescent bulbs or 50 watts in the case of 1939X and 1940 bulbs.
• 14VDC and 28VDC compatible
• Minimum 400 Lumens (White Tail bulb is higher)
•NOT FAA/PMA Approved. Experimental
Aircraft, Marine & Off Road Vehicles Only (for Certified aircraft -
Consult your A&P/IA for permission to install as a "minor
alteration").
• Ideal for uAvionix Tail Beacon ADS-B users who must keep power on to Nav lights to ensure the Tail Beacon is providing an ADS-B out signal.
• Red and Green Colored LEDs preserve red and green illumination color when behind red and green lenses.
Drop Down Buy It Now Menu Below is for
3 LED Bulbs (Red, Green & White)
or
5 LED Bulbs (2-Red, 2-Green, 1 White)
or
SIngle Bulb
Inventory Now Available
Companion Item

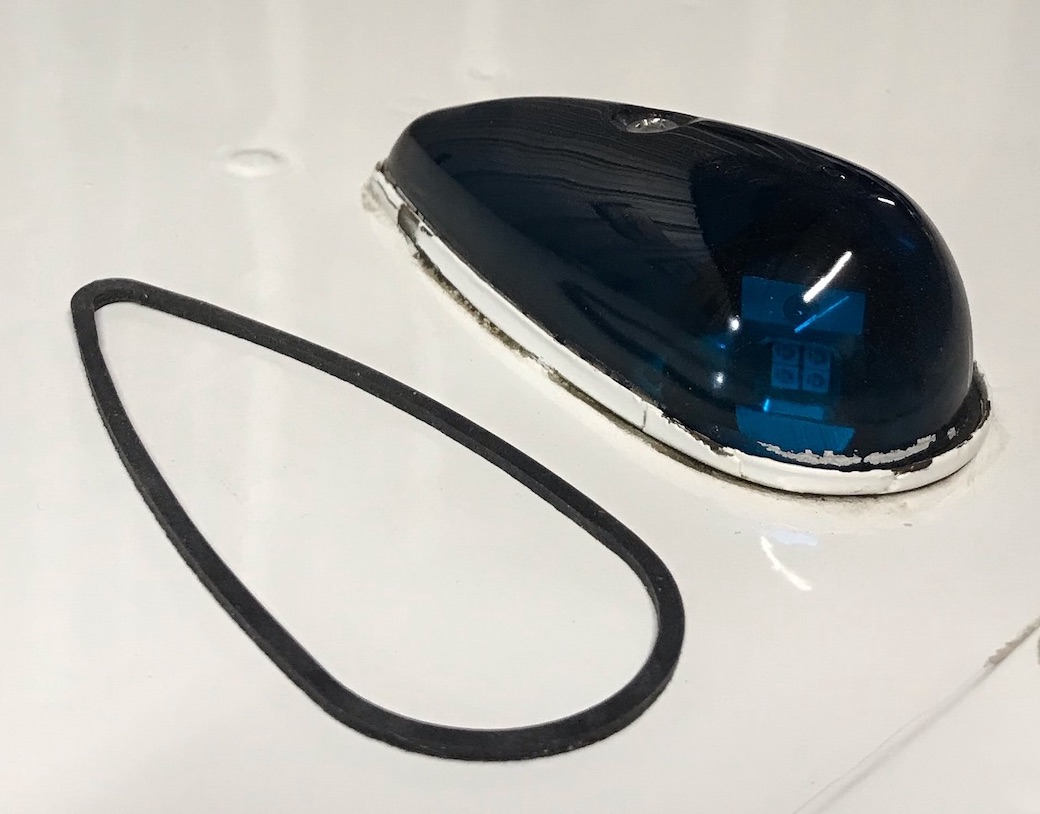

Silicone Replacement for
PN: A2134 Teardrop Lens Gasket
Silicone (AMS 3303.050)
replacement gasket for PN: A2134 for Experimental Aircraft* with

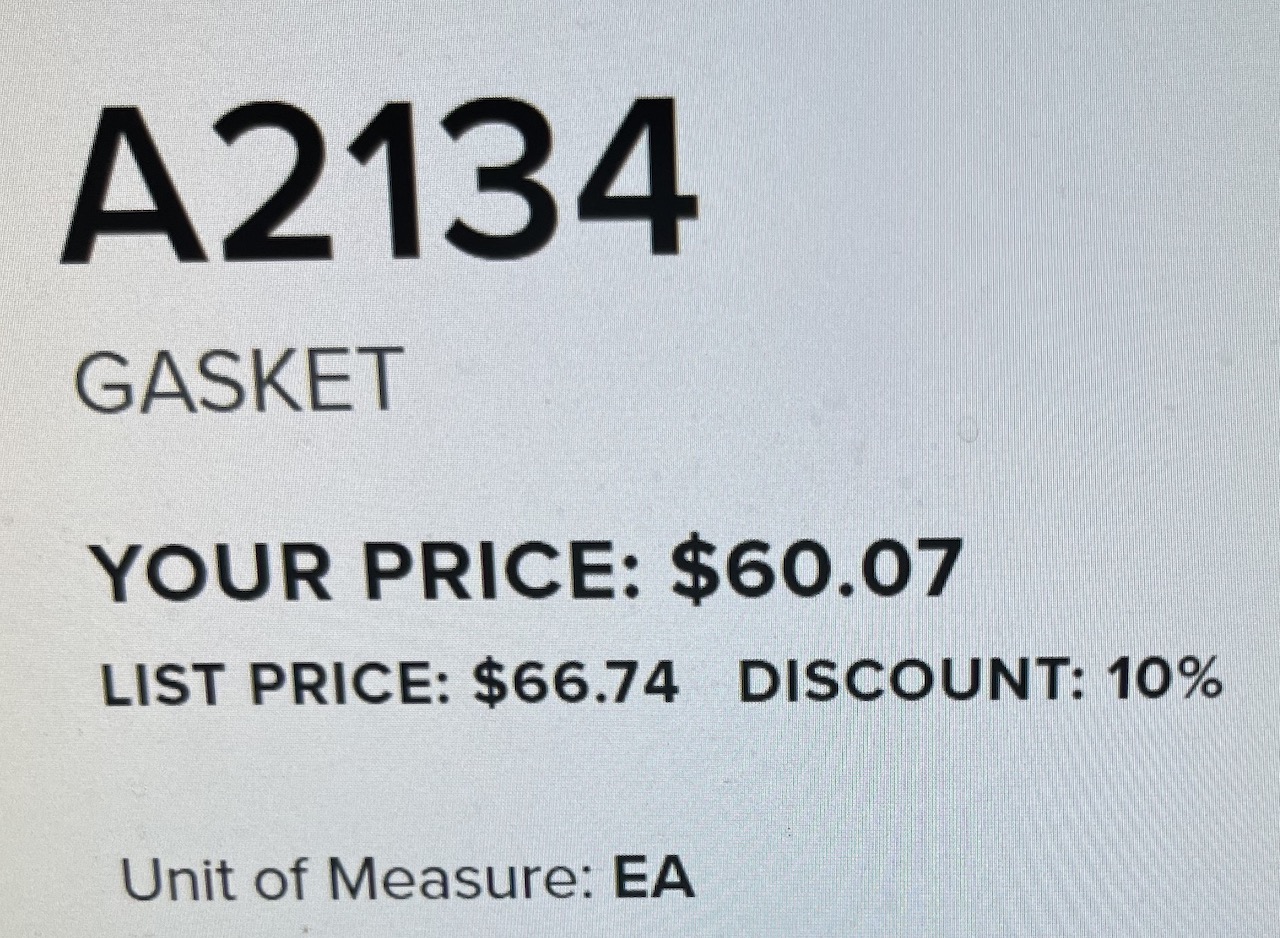

teardrop Nav Light lenses. Market retail list pricing for PN: A2134 (non-silicone) is
$66.74
CSOBeech.com pricing is $17.50 each including FREE 1st Class USPS shipping to US addresses. International addresses higher.
Click Below to Buy It Now.
You can change quantities after clicking Buy It Now.
International Buyers Email me with quantity desired and I will generate a PayPal invoice with your International 1st Class shipping.
*For Certified Aircraft -
Consult your A&P/IA for permission to install as a "minor
alteration".
